LawMate PV-500 ECO2 & BU20 CMOS Camera Package (free TC10 Tie Clip Camera)

£345.79

10 in stock

SKU: LMPV500ECO2B Category:
  • Description
  • Contents
  • Downloads

Description

The PV500 ECO2 by LawMate is a first level law enforcement grade pocket digital video recorder, built and designed for professional covert video surveillance operations. This recorder package is supplied with the excellent LawMate BU20 CMOS Button Camera.



For a limited special offer, the TC-10 CMOS Tie Clip Camera is included with this package free of charge (normally £219.96).



This portable pocket DVR features a high resolution @ 720 X 576 at 25 fps. With time and date stamping, this rugged unit will serve your covert video operational functions well. With the PV500 ECO2 release, this fourth-generation pocket digital video recorder now has touch screen controls and a new tile platform interface for ease of use.



The LawMate PV-500 ECO 2 recorder has the ability to record continuously or can be set to motion activation. It can be used for both body-wear walk around covert video applications or stationary in place covert video operations. The standard clip-on battery will power the recorder for 3+ hours, the optional BA-4400mAh battery will power the recorder for 6+ hours.



A new feature for the PV-500 ECO2 is the ability to support 12v cameras using the supplied cabling. Using the supplied AV input cable, you can also use this excellent DVR with any non-LawMate camera with the ability to power a 12v camera (with supplied cabling). The DVR also provides the option to record in 3, 5 or 10 minute file lengths.



PV-500 ECO2 DVR Features:

• Small Palm Sized Digital Video Recorder
• IR Remote Controller
• New Touch Screen Controls
• High Resolution 720 x 576 (25 fps/PAL) or 720×480 (30fps/NTSC)
• Time Stamp Functionality
• Continuous Recording/Motion Detection/Overwrite Functionality
• USB Connection for data transfer
• SD Card Storage (up to 32gb)
• Colour 3 inch TFT Display
• Compatible with Analogue Cameras
• Easy to use interface
• Delete files on device
• Reformat SD Card on Device
• Optional password protection
• Screen lock function



Specifications:

• LCD Display: 3 inch TFT LCD
• Picture Resolution: 720×576
• Frame Rate: 25 fps
• TV Output: NTSC/PAL Adjustable
• Video Format: MPEG4
• Photo format: JPEG
• Storage Format: FAT32, NTFS
• Remote Control: IR Remote Control
• Wire Control: Power ON/OFF Wire Pilot Control
• PC Interface: Mini USB 2.0
• Microphone: AGC Quality (with LawMate camera solutions)
• File Generation Gap Time: 3 seconds
• Date/Time: YYYY/MM/DD. HH:MM:SS

• Operation Time: CCD Camera: 200 min, CMOS Camera: 250 min
• Battery Life: 200+ min
• Charging Time: 4 Hour
• Battery Type: Li-ion Battery: 2200mA/4400mA
• Power Supply Voltage: DC 5V
• Power Supply Current: Recording: 600 mAH, Playback: 480 mAH
• Memory: SD and Micro SD (up to 32gb capacity)
• Dimensions: 85 x 55 17 mm

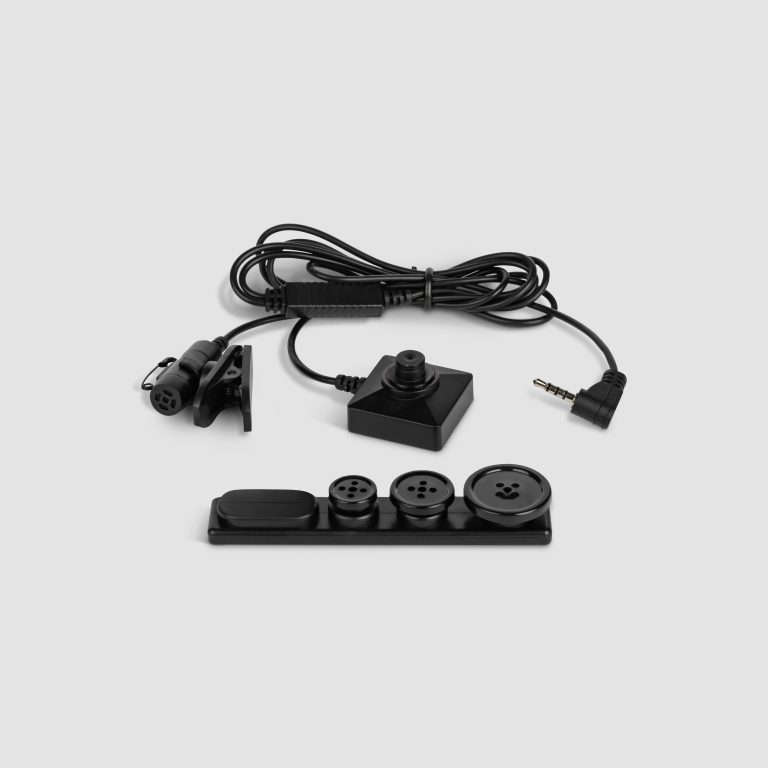

CM-BU20 CMOS Camera Features:

  • 520 TV Line resolution
  • ¼” CMOS sensor (4:3 ratio)
  • Exceptional Low light sensitivity, 0.015 lux @ F1.2
  • Field of view 66°
  • Dimensions: 24.8mmx24.8mmx17mm
  • Weight only 22g

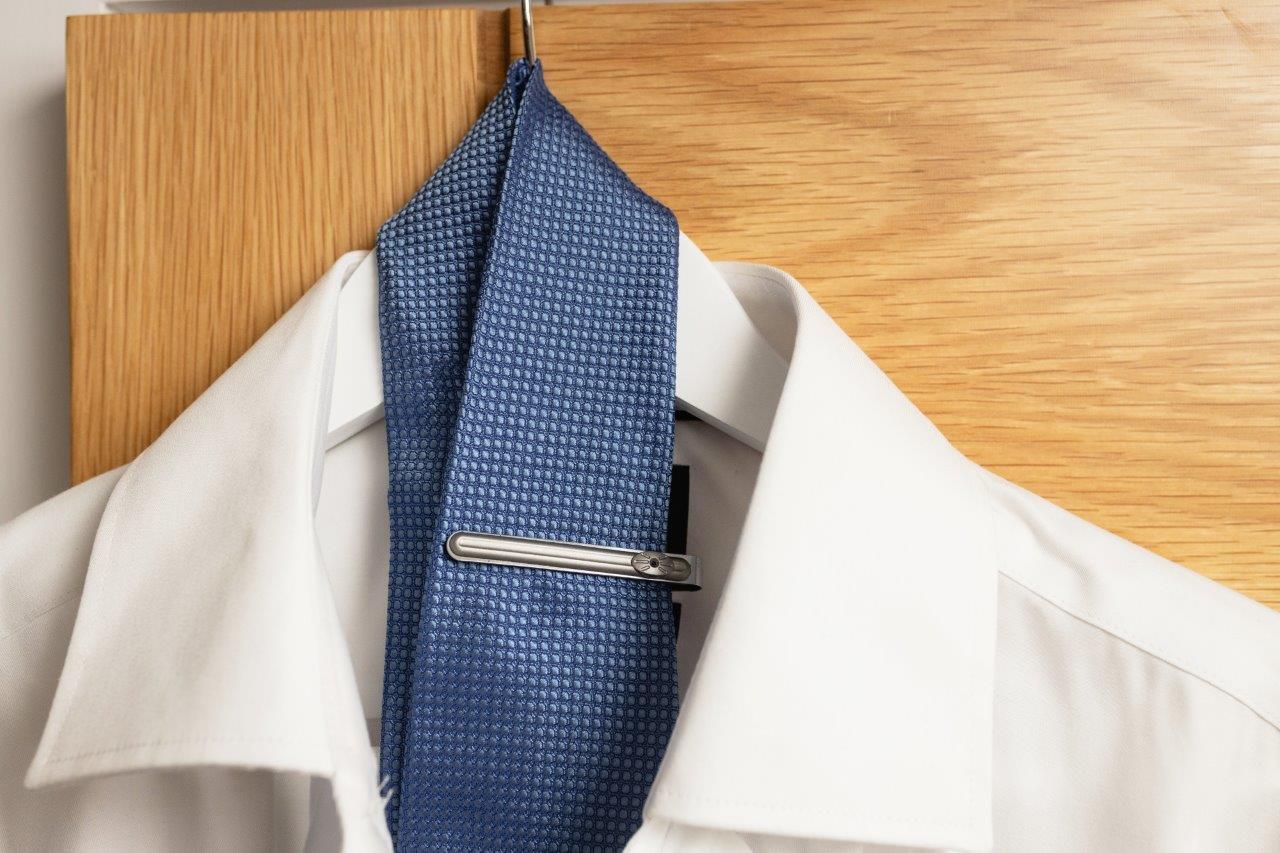

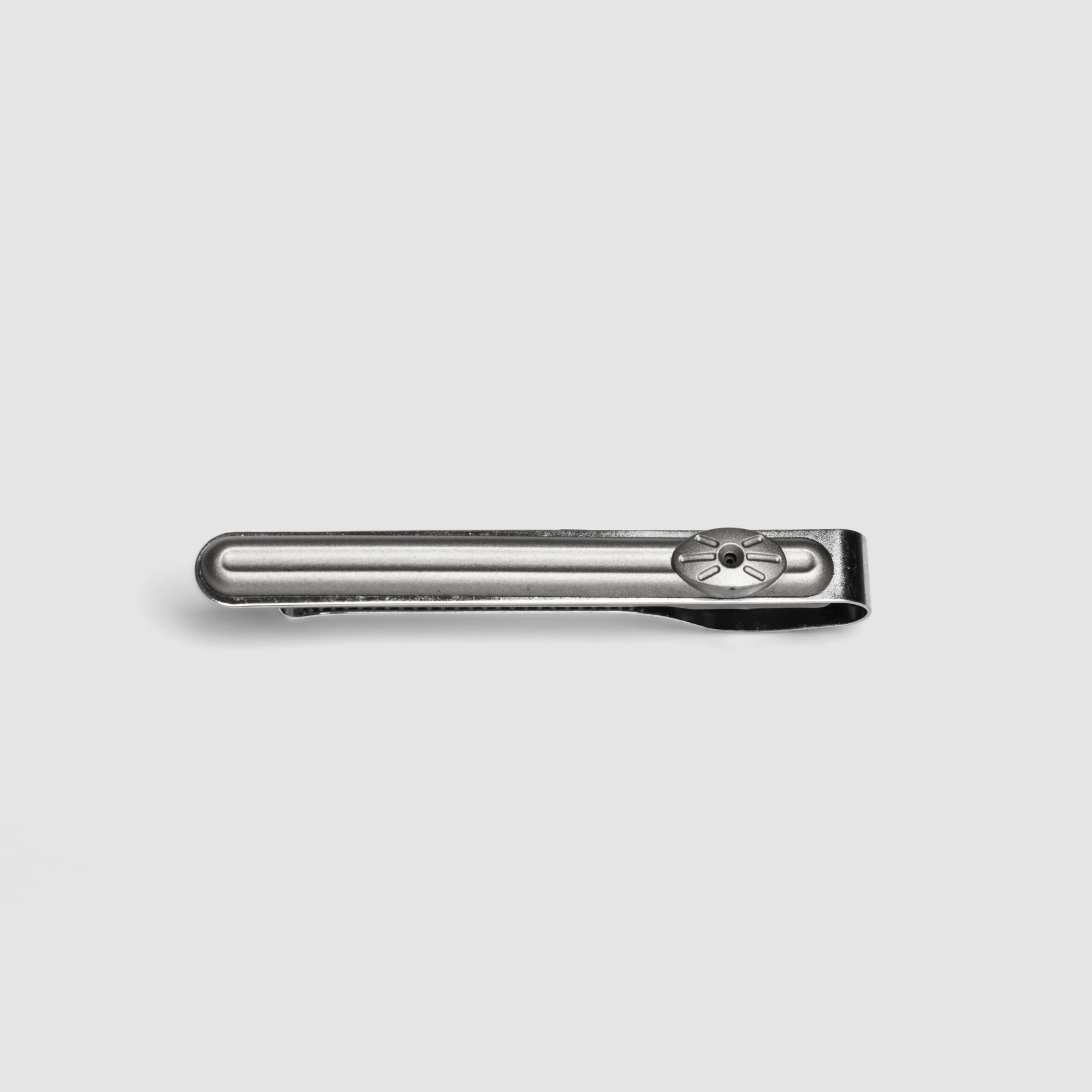

CM-TC10 Tie Clip CameraFeatures:

  • 480 TV Line resolution
  • 1/13” CMOS sensor (4:3 ratio)
  • ACG quality microphone
  • Illumination sensitivity: 4V (Lux-sec)
  • Field of view 60°
  • PAL/NTSC switchable
  • Weight only 20g



*** If you are a video mystery shopper seeking video equipment, the recommended system for this application is the PV-500 NEO PRO CAMERA KIT ***

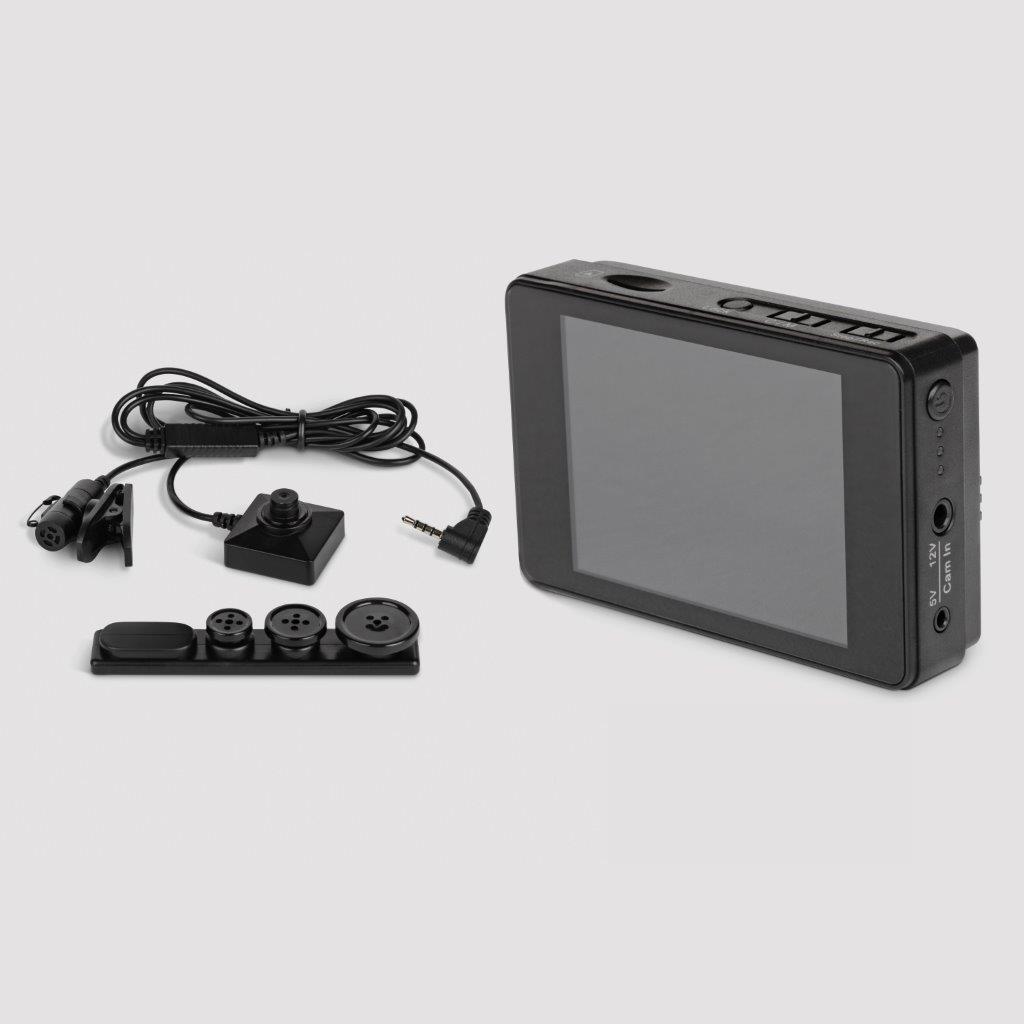

PV-500 ECO2 DVR:
Lawmate PV500 ECO2 Pocket DVR
IR Controller
USB Cable
DC 5V Charger
Carrying Case / padded holster
Li-ion Battery
AV Cables (AV-in/AV-out)
Cable Controller
16gb Micro SD card (with adaptor)
PV500 ECO2 Guide



BU20 CMOS Camera Lens:
CM-BU20 camera
Selection of button camera heads
Selection of shirt buttons
Flat lens cover and adhesive tape
Instruction guide



TC10 Tie Clip Camera Lens:
CM-TC10 tie camera
AV output cable
PP3 battery holder
Instruction guide
